Husqvarna Viking | Clear Invisible Zipper Foot | 413286545

Out of stock, available to order for dispatch when back in stock
Add an invisible zip with ease with the Clear Invisible Zipper Foot..

Scroll down for more information
  • ColourClear
  • BrandHusqvarna Viking
  • TypePlastic
  • EAN7393033066222

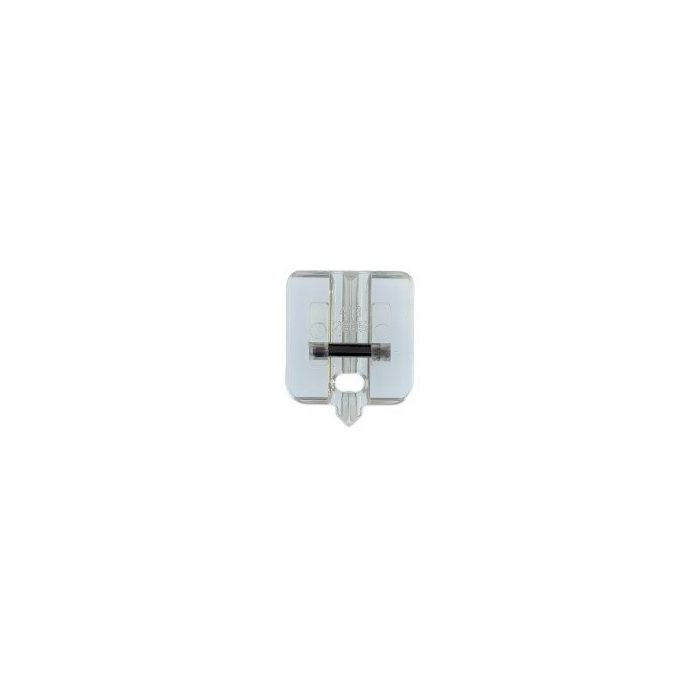

Clear Invisible Zipper Foot

Brand: Husqvarna Viking
Category: Groups 1, 2, 3, 4, 5, 6, 7, 8, 9

Zipper application is often thought of as very difficult to do, however it's really one of the easiest, especially when sewn with this Clear Invisible Zipper Foot. It is used mostly in the centre back of dresses or back or side of trousers. As the name implies, the zipper is hidden in a seam, becoming virtually invisible for a neat finish.

An invisible zipper is always inserted before stitching the garments seam. The Invisible Zipper Foot has two grooves underneath the foot to accommodate the zipper coils and hold them in place as you stitch. Buy a zipper that is at least 1 1/4" (3 cm) longer than the zipper opening.

Information on use:
1. An invisible zipper is always inserted before stitching the garment seam.
2. Mark the length of the zipper opening on the seam allowances and on the zipper. The excess length should be at the bottom of the zipper.
3. Snap on the Clear Invisible Zipper Foot
4. Select centre needle position straight stitch. Length 2.5-3.0.
5. Place the right part of the zipper on the right side of the seam, right sides together. The coil should be placed on the seam line, starting about ¾” (2cm) below the cut edge of the fabric.
6. Carefully press the zipper teeth slightly to the right and lower the presser foot, so that the coil lies in the groove to the right of the needle.
7. Starting at the top, sew the zipper in place. Stop at the mark on the zipper and seam allowance and tie-off.
8. Place the second zipper tape on the left side of the opening, right sides together. Make sure both coils are level.
9. Pin the zipper in place. Open the zipper.
10. Lower the presser foot with the left groove over the zipper teeth. Sew in the same way as the first guide.
11. Close the zipper. Place the fabric with the zipper right sides together. Pin the rest of the fabric below the zipper right sides together.
12. Snap on the regular Zipper Foot E to the left of the needle. Adjust the needle position as needed.
13. Sew the seam from the lower edge and up to the zipper overlapping the backstitched seam.
14. Press the seam open

Note: Buy an invisible zipper that is at least 1 ¼” (3cm) longer than the zipper opening. To be used with zigzag stitch plate.

Part number: 413286545

Want to know more about Husqvarna Viking accessories? Click here to view the Accessories Catalogue.
More Information
GTIN 7393033066222
Colour Clear
Type Plastic
Brand Husqvarna Viking
