Husqvarna Viking | Interchangeable Dual Feed (Walking Foot) | 920219096

£119.99
In Stock
The interchangeable dual feed, also known as a walking foot, prevents multiple layers of fabric from slipping by feeding from the top as well as the bottom.

Scroll down for more information
  • BrandHusqvarna Viking
  • EAN7393033048037

Interchangeable Dual Feed (Walking Foot)

Brand: Husqvarna Viking
Category: Group 5, 6, 7
Not suitable for: Emerald series, Eden Rose 250M, Tribute 140M, Tribute 145M, Onyx series

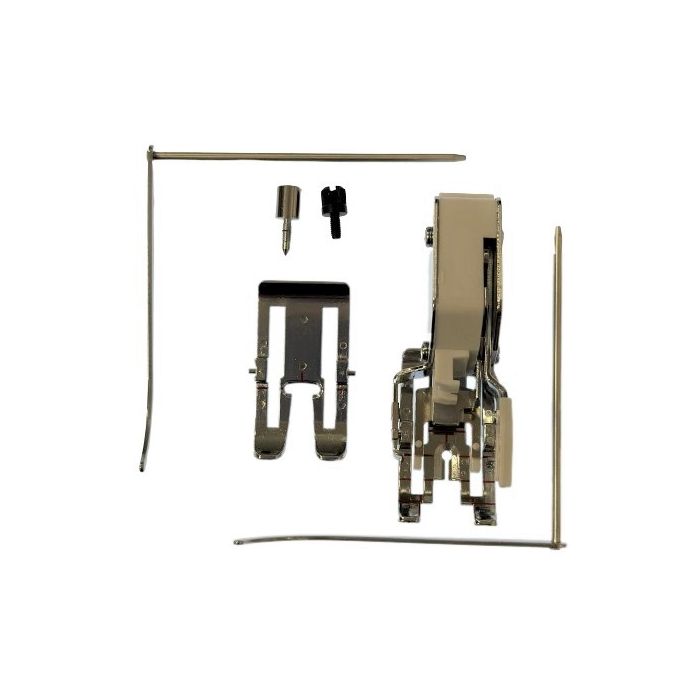

Pack contents: Dual Feed Foot (Walking Foot), left and right quilting guides, Changeable Straight Stitch Foot, Changeable Zigzag Foot, needle clamp screw, presser foot ankle screw, instructions for use

PayPal Pay in 3

Spread the cost with PayPal Pay in 3. Pay in three interest-free payments on purchases from £30 to £2,000. Click here to learn more.


The Dual Feed Foot with changeable presser feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, stretch fabrics, imitation leathers and fabrics need precise pattern matching. It is also known as a walking foot.



Information on use:

When using the Changeable Straight Stitch Foot, select the centre needle straight stitch and adjust it up to a maximum stitch length of 6. When using the Changeable Zigzag Foot, select stitches up to a maximum of 7mm wide and 6mm and long.

1. Remove the presser foot ankle by unscrewing the ankle screw.
2. Place the Dual Feed Foot onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Dual Feed Foot onto the presser foot bar with the presser foot ankle screw. Reduce presser foot pressure to 3.

To snap-on and remove the changeable presser foot:
3. With presser foot bar in the up position, place the presser foot under the Dual Feed Foot.
4. Push the changeable foot upwards so that it snaps into place.
5. To remove the changeable foot, push the front of the foot upwards until the foot snaps off.

The two guides included with the Dual Feed Foot will help you sew parallel rows of stitching side by side as in channel quilting or tucking. There is one guide for the left side, and one for the right.

How to attach the guide:
6. Insert the guide into the hole in the back of the dual feed.
7. Adjust the space between the foot and the guide by pulling it to the left or to the right.

Available additional accessories to the Interchangeable Dual Feed:
Changeable 1/4" Guide Foot
Changeable Decorative Guide Foot
Changeable Open Toe Foot
Changeable Quilters Guide Foot

Part number: 920219096


Want to know more about Husqvarna Viking accessories? Click here to view the Accessories Catalogue.
More Information
GTIN 7393033048037
Brand Husqvarna Viking
