Husqvarna Viking | 1/2" Quilt Binder Attachment | 920507096

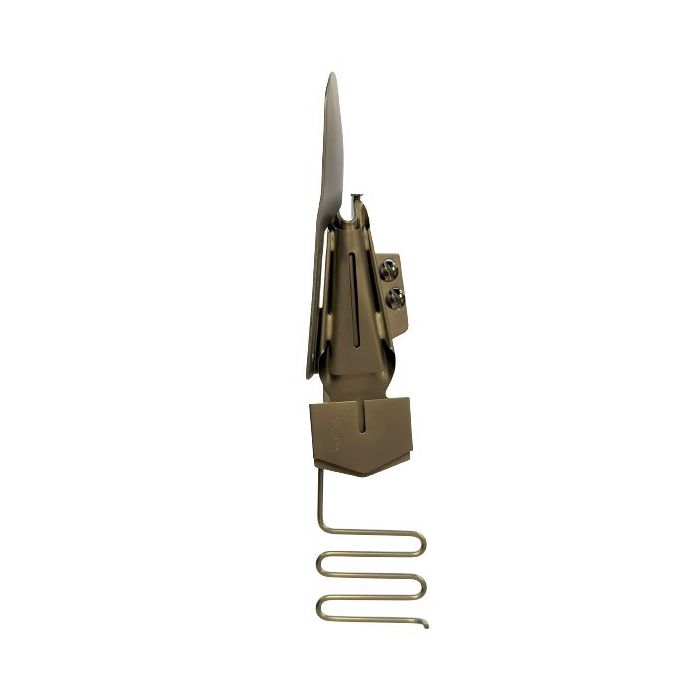

1/2" Quilt Binder Attachment

Brand: Husqvarna Viking
Category: Group 7, 8 (can also be used with the Designer Epic 2 when used with the IDF Quilt Binder Foot)
Suitable for: Designer Epic, Epic 980Q, BRILLIANCE™ series, DESIGNER DIAMOND™ series, DESIGNER RUBY™ series, DESIGNER TOPAZ™ series, SAPPHIRE™ series, OPAL™ series, EDEN ROSE™ 250C, TRIBUTE™ 140C, TRIBUTE™ 145C, DESIGNER SAPPHIRE™ 85



The Double Fold half inch (12mm) binder will turn a light weight woven fabric strip into a binding and attach it to the project edges all in one step. To bind edges with the half inch (12mm) Quilt Binder, cut a 1¾ inch (45mm) wide strip of light weight woven fabric. Mitred quilt corners are effortless with the Quilt Binder, and don't just limit yourself to quilts... If it needs binding then the Quilt Binder is the answer for you.

Please note: Owners of older Opal, Sapphire, Topaz, Ruby and Diamond series machines may need to purchase a new needle plate to allow you to attach the Quilt Binder (there are two holes on the right hand side of compatible stitch plates). You can view the compatible Zigzag Needle Plate with Imperial Markings here and the Zigzag Needle Plate with Metric Markings here.

The Quilt Binder is to be used with the Interchangeable Dual Feet (Walking Foot), which you can view here.

Information on Use:

1. Attach the Interchangeable Dual Feed and Quilt foot.
2. Set the machine for straight stitch or hand look quilt stitch.
3. Place the attachment plate on the stitch plate of the machine. Align pin on the back of attachment plate to the top opening on the stitch plate of the machine. Screw the attachment plate in place with one thumb screw.
4. Place the binder on the attachment plate and adjust the binder to line up. Attach the binder in place with the two thumb screws and washers.
5. Measure the length of your project and add at least 6” (15cm).
6. Cut enough 1 3/4” (45mm) strips to equal that number and join the strips together. Cut the end of the strip into a point.
7. Slide the fabric strip into the binder with the wrong side facing you using tweezers.
8. When the fabric is through the end of the binder, hold the folded strip with your left hand and continue to feed it into the binder as shown while the fabric forms a double fold tape.
9. Raise the presser foot and pull the strip under the foot and straight back 2.5” (5-6cm) behind the needle.
10. Slide the fabric to be bound right side up into the slot of the binder. Adjust the stitch position to right or left to reach the desired needle position.

How to sew a quilt binder corner:
Sew to the edge of the quilt, tie off and then pull the quilt out from binder. Keep the quilt close to the binder when folding the corners. Finger press the folded fabric.

Create a mitred corner:
1. Fold and pinch the top mitred corner, pin in place with a long pin. Repeat in the same way on the back of the quilt.
2. To continue sewing the binding, pull the fabric strip back through the binder and at the same time place the quilt back under the presser foot and into the binder again.
3. To ensure that the fold is right on both top and back, pull the quilt forward and back again a couple of times.
4. Lower the needle to hold the binding in place and remove the needles. Pull out long thread tails behind the presser foot before start to sew. Backstitch and sew the binder in place. Repeat on the other corners.

How to end the binding:
1. Sew the binding all the way around the quilt edges. When the edges off the binding almost meet, cut the excess of fabric in the beginning of binding as illustration.
2. Continue to sew, overlapping the binding one more time. Remove the quilt from the binder and trim excess leaving 1” (2.5) cm tail. Fold back the opening and pin in place. Sew a seam over the folded edge.

NOTE: See the detailed instructions included with the attachment.

Part number: 920507096
